UC3843D
Manufacturer:
On Semiconductor
Mfr.Part #:
UC3843D
Datasheet:
Description:

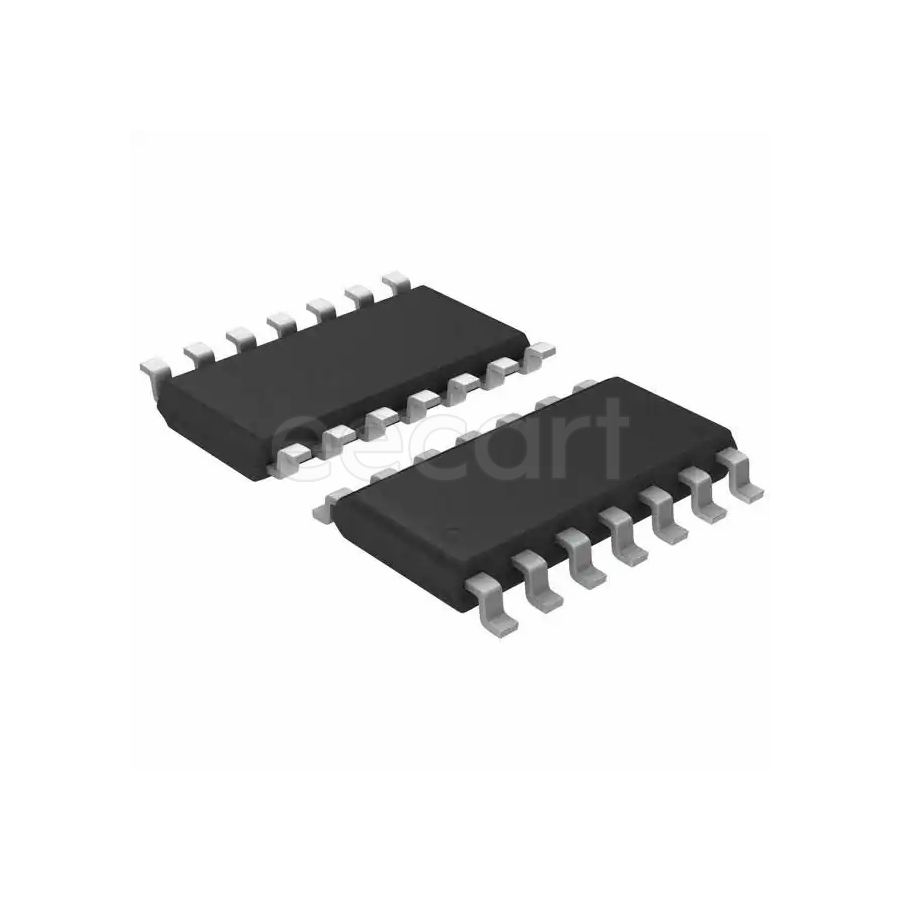

Voltage Regulators - Switching SOP-14 SMD/SMT Boost, Flyback Transistor Driver 13.5 V
| Parameter | Value |
|---|---|
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 14 |
| Packaging | Tube |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Voltage | 30 V |
| REACH SVHC | No SVHC |
| Frequency | 500 kHz |
| Min Input Voltage | 7.6 V |
| Output Current | 1 A |
| Output Voltage | 13.5 V |
| Output Type | Transistor Driver |
| Max Supply Voltage | 30 V |
| Min Supply Voltage | 12 V |
| Operating Supply Current | 17 mA |
| Max Frequency | 500 kHz |
| Topology | Boost, Flyback |
| Switching Frequency | 500 kHz |
| Max Input Voltage | 30 V |
| Number of Outputs | 1 |
| Rise Time | 45 ns |
| Nominal Supply Current | 17 mA |
| Nominal Input Voltage | 25 V |
| Duty Cycle | 100 % |
| Max Duty Cycle | 100 % |
| Function | Step-Up, Step-Up/Step-Down |
